Introduction
PLASTIC TRAY attached to LEADER Food Dryer Detail


PLASTIC TRAY :

standard net tray
size : 120cm*60cm*5cm
mesh : 3.2cm*0.8cm
material : polypropylene



COMBUSTION FURNACE
& FAN :
that are inside of the equipment generating hot wind.


COMPARTMENT:
the dryness box for drying Foods.
shelves are inside of it. and the trays are arranged in them.


COMPUTED PROGRAM COMTROLLER
(CPC):
attached to model of SAT-60A & SAT-30A.
The original control board incorporating the control program by the computer of our company.


THERMO CENSOR:

←DUMPER DRIVE UNIT:
I
t drives both a intake damper and a ceiling shutter by the motor. The change of automatic operation by CPC and manual operation can be performed.


OIL BURNER :
attached to combustion furnace.
fuel : right oil


OIL TANK;


CHIMNEY

material : SUS430

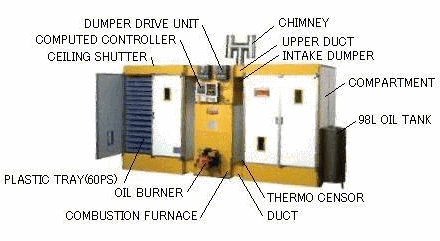

LEADER Food Dryer : 60 series ( photo SAT-6OA )

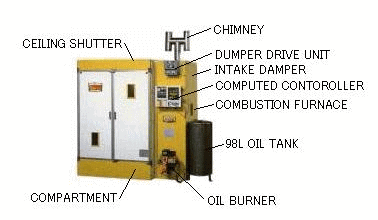

LEADER Food Dryer : 30 series ( photo SAT-3OA )

Dryness System of Leader Food Dryer

A Leader Food Dryer is the shelf type hot wind dryer which can dry the broad Food including shiitake mushroom.


Essence
  • Dryer mainly consists of the dryness box (: compartment ) for drying Foods and the equipment that generates hot wind with combustion furnace and fan.Oil burner is attached to combustion
  • Shelves are in the inside of the box, and the trays for dryness are arranged in it.
  • A hot wind is sent into a bottom of the box from the equipment . and it goes through the trays from a bottom toward a ceiling.
  • Then, the Food on a tray is dried.
Dryness Process Operations
in case of Shiitake Mushroom ( one of examples)


Starting Period: 7 hours
  • temperature inside of the dryness box: 40C - 45C
  • intake-exhaust system:  open condition
  • rotation of fan: maximum speed
middle period: 7 hours
  • temperature inside of the dryness box: 45C - 55C
  • intake-exhaust system:  half circulating condition
  • rotation of fan: 95% of maximum speed
terminal period: 7 hours
  • temperature inside of the dryness box: 55C - 60C
  • intake-exhaust system:  circulating condition
  • rotation of fan: 90 percent of maximum speed





Dryness System in Open Condition

Exhaust

Intake

Trays

Fan

Combustion Furnace



Dryness Box

Equipment Generating Hot Wind

Dryness System in Circulating Condition

Exhaust Ceiling Shutter [CLOSED]

Intake Damper: [CLOSED]

LEADER Food Dryer: 30series
